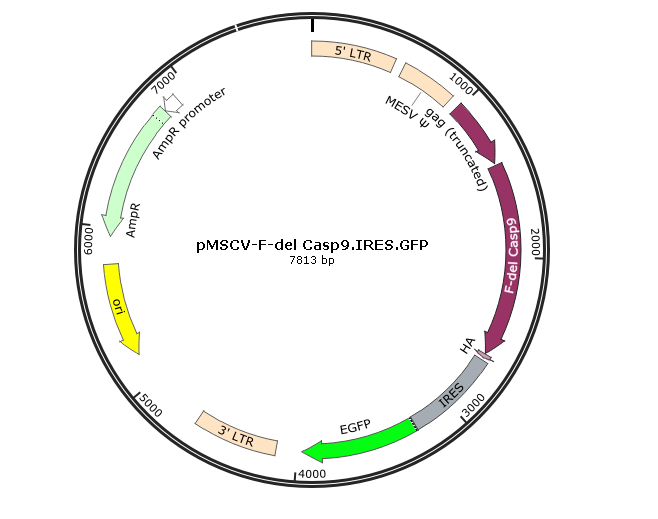

pMSCV-F-del Casp9.IRES.GFP

LOCUS       pMSCV-F-del Casp9.IRES.GFP                7813 bp DNA     circular SYN 12-JUL-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 7813)
  AUTHORS   Biofeng
  TITLE     Direct Submission
  JOURNAL   Exported Jul 12, 2023 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..7813
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     misc_feature    580..921
                     /label=MESV Psi
                     /note="packaging signal of murine embryonic stem cell
                     virus"
     CDS             988..1404
                     /label=gag (truncated)
                     /note="truncated Moloney murine leukemia virus (MMLV) gag
                     gene lacking the start codon"
     CDS             1428..1748
                     /codon_start=1
                     /product="F36V mutant of FK506-binding protein FKBP12"
                     /label=DmrB
                     /note="binds synthetic ligands that do not bind wild-type
                     FKBP"
                     /translation="GVQVETISPGDGRTFPKRGQTCVVHYTGMLEDGKKVDSSRDRNKP
                     FKFMLGKQEVIRGWEEGVAQMSVGQRAKLTISPDYAYGATGHPGIIPPHATLVFDVELL
                     KLE"
     CDS             complement(2100..2111)
                     /codon_start=1
                     /product="WELQut protease recognition and cleavage site"
                     /label=WELQut site
                     /translation="WELQ"
     CDS             2625..2651
                     /codon_start=1
                     /product="HA (human influenza hemagglutinin) epitope tag"
                     /label=HA
                     /translation="YPYDVPDYA"
     CDS             3249..3968
                     /codon_start=1
                     /product="the original enhanced GFP (Yang et al., 1996)"
                     /label=EGFP
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTL
                     KFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDD
                     GNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIK
                     VNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLL
                     EFVTAAGITLGMDELYK"
     LTR             4130..4645
                     /label=3' LTR
                     /note="3' long terminal repeat from murine embryonic stem
                     cell virus"
     protein_bind    4807..4823
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(4831..4861)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4876..4897
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(5185..5773)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(5944..6804)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(6805..6909)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     7383..7399
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     LTR             join(7812..7813,1..516)
                     /label=5' LTR
                     /note="5' long terminal repeat from murine embryonic stem
                     cell virus"
ORIGIN
        1 tgaaagaccc cacctgtagg tttggcaagc tagcttaagt aacgccattt tgcaaggcat
       61 ggaaaataca taactgagaa tagagaagtt cagatcaagg ttaggaacag agagacagca
      121 gaatatgggc caaacaggat atctgtggta agcagttcct gccccggctc agggccaaga
      181 acagatggtc cccagatgcg gtcccgccct cagcagtttc tagagaacca tcagatgttt
      241 ccagggtgcc ccaaggacct gaaaatgacc ctgtgcctta tttgaactaa ccaatcagtt
      301 cgcttctcgc ttctgttcgc gcgcttctgc tccccgagct caataaaaga gcccacaacc
      361 cctcactcgg cgcgccagtc ctccgataga ctgcgtcgcc cgggtacccg tattcccaat
      421 aaagcctctt gctgtttgca tccgaatcgt ggactcgctg atccttggga gggtctcctc
      481 agattgattg actgcccacc tcgggggtct ttcatttgga ggttccaccg agatttggag
      541 acccctgcct agggaccacc gacccccccg ccgggaggta agctggccag cggtcgtttc
      601 gtgtctgtct ctgtctttgt gcgtgtttgt gccggcatct aatgtttgcg cctgcgtctg
      661 tactagttag ctaactagct ctgtatctgg cggacccgtg gtggaactga cgagttctga
      721 acacccggcc gcaaccctgg gagacgtccc agggactttg ggggccgttt ttgtggcccg
      781 acctgaggaa gggagtcgat gtggaatccg accccgtcag gatatgtggt tctggtagga
      841 gacgagaacc taaaacagtt cccgcctccg tctgaatttt tgctttcggt ttggaaccga
      901 agccgcgcgt cttgtctgct gcagcgctgc agcatcgttc tgtgttgtct ctgtctgact
      961 gtgtttctgt atttgtctga aaattagggc cagactgtta ccactccctt aagtttgacc
     1021 ttaggtcact ggaaagatgt cgagcggatc gctcacaacc agtcggtaga tgtcaagaag
     1081 agacgttggg ttaccttctg ctctgcagaa tggccaacct ttaacgtcgg atggccgcga
     1141 gacggcacct ttaaccgaga cctcatcacc caggttaaga tcaaggtctt ttcacctggc
     1201 ccgcatggac acccagacca ggtcccctac atcgtgacct gggaagcctt ggcttttgac
     1261 ccccctccct gggtcaagcc ctttgtacac cctaagcctc cgcctcctct tcctccatcc
     1321 gccccgtctc tcccccttga acctcctcgt tcgaccccgc ctcgatcctc cctttatcca
     1381 gccctcactc cttctctagg cgccggaatt acgccaccat gctcgaggga gtgcaggtgg
     1441 agactatctc cccaggagac gggcgcacct tccccaagcg cggccagacc tgcgtggtgc
     1501 actacaccgg gatgcttgaa gatggaaaga aagttgattc ctcccgggac agaaacaagc
     1561 cctttaagtt tatgctaggc aagcaggagg tgatccgagg ctgggaagaa ggggttgccc
     1621 agatgagtgt gggtcagaga gccaaactga ctatatctcc agattatgcc tatggtgcca
     1681 ctgggcaccc aggcatcatc ccaccacatg ccactctcgt cttcgatgtg gagcttctaa
     1741 aactggaatc tggcggtgga tccggagtcg acggatttgg tgatgtcggt gctcttgaga
     1801 gtttgagggg aaatgcagat ttggcttaca tcctgagcat ggagccctgt ggccactgcc
     1861 tcattatcaa caatgtgaac ttctgccgtg agtccgggct ccgcacccgc actggctcca
     1921 acatcgactg tgagaagttg cggcgtcgct tctcctcgct gcatttcatg gtggaggtga
     1981 agggcgacct gactgccaag aaaatggtgc tggctttgct ggagctggcg cggcaggacc
     2041 acggtgctct ggactgctgc gtggtggtca ttctctctca cggctgtcag gccagccacc
     2101 tgcagttccc aggggctgtc tacggcacag atggatgccc tgtgtcggtc gagaagattg
     2161 tgaacatctt caatgggacc agctgcccca gcctgggagg gaagcccaag ctctttttca
     2221 tccaggcctg tggtggggag cagaaagacc atgggtttga ggtggcctcc acttcccctg
     2281 aagacgagtc ccctggcagt aaccccgagc cagatgccac cccgttccag gaaggtttga
     2341 ggaccttcga ccagctggac gccatatcta gtttgcccac acccagtgac atctttgtgt
     2401 cctactctac tttcccaggt tttgtttcct ggagggaccc caagagtggc tcctggtacg
     2461 ttgagaccct ggacgacatc tttgagcagt gggctcactc tgaagacctg cagtccctcc
     2521 tgcttagggt cgctaatgct gtttcggtga aagggattta taaacagatg cctggttgct
     2581 ttaatttcct ccggaaaaaa cttttcttta aaacatcagt cgactatccg tacgacgtac
     2641 cagactacgc actcgactaa gaattcatcg agcgggatca attccgcccc ccccctaacg
     2701 ttactggccg aagccgcttg gaataaggcc ggtgtgcgtt tgtctatatg ttattttcca
     2761 ccatattgcc gtcttttggc aatgtgaggg cccggaaacc tggccctgtc ttcttgacga
     2821 gcattcctag gggtctttcc cctctcgcca aaggaatgca aggtctgttg aatgtcgtga
     2881 aggaagcagt tcctctggaa gcttcttgaa gacaaacaac gtctgtagcg accctttgca
     2941 ggcagcggaa ccccccacct ggcgacaggt gcctctgcgg ccaaaagcca cgtgtataag
     3001 atacacctgc aaaggcggca caaccccagt gccacgttgt gagttggata gttgtggaaa
     3061 gagtcaaatg gctctcctca agcgtattca acaaggggct gaaggatgcc cagaaggtac
     3121 cccattgtat gggatctgat ctggggcctc ggtgcacatg ctttacatgt gtttagtcga
     3181 ggttaaaaaa cgtctaggcc ccccgaacca cggggacgtg gttttccttt gaaaaacacg
     3241 ataataccat ggtgagcaag ggcgaggagc tgttcaccgg ggtggtgccc atcctggtcg
     3301 agctggacgg cgacgtaaac ggccacaagt tcagcgtgtc cggcgagggc gagggcgatg
     3361 ccacctacgg caagctgacc ctgaagttca tctgcaccac cggcaagctg cccgtgccct
     3421 ggcccaccct cgtgaccacc ctgacctacg gcgtgcagtg cttcagccgc taccccgacc
     3481 acatgaagca gcacgacttc ttcaagtccg ccatgcccga aggctacgtc caggagcgca
     3541 ccatcttctt caaggacgac ggcaactaca agacccgcgc cgaggtgaag ttcgagggcg
     3601 acaccctggt gaaccgcatc gagctgaagg gcatcgactt caaggaggac ggcaacatcc
     3661 tggggcacaa gctggagtac aactacaaca gccacaacgt ctatatcatg gccgacaagc
     3721 agaagaacgg catcaaggtg aacttcaaga tccgccacaa catcgaggac ggcagcgtgc
     3781 agctcgccga ccactaccag cagaacaccc ccatcggcga cggccccgtg ctgctgcccg
     3841 acaaccacta cctgagcacc cagtccgccc tgagcaaaga ccccaacgag aagcgcgatc
     3901 acatggtcct gctggagttc gtgaccgccg ccgggatcac tctcggcatg gacgagctgt
     3961 acaagtaaag cggccgcgac tctagagtcg acctgcaggc atgcaagctt caggtagccg
     4021 gctaacgtta acaaccggta cctctagaac tatagctagc atgcgcaaat ttaaagcgct
     4081 gatatcgata aaataaaaga ttttatttag tctccagaaa aaggggggaa tgaaagaccc
     4141 cacctgtagg tttggcaagc tagcttaagt aacgccattt tgcaaggcat ggaaaataca
     4201 taactgagaa tagagaagtt cagatcaagg ttaggaacag agagacagca gaatatgggc
     4261 caaacaggat atctgtggta agcagttcct gccccggctc agggccaaga acagatggtc
     4321 cccagatgcg gtcccgccct cagcagtttc tagagaacca tcagatgttt ccagggtgcc
     4381 ccaaggacct gaaaatgacc ctgtgcctta tttgaactaa ccaatcagtt cgcttctcgc
     4441 ttctgttcgc gcgcttctgc tccccgagct caataaaaga gcccacaacc cctcactcgg
     4501 cgcgccagtc ctccgataga ctgcgtcgcc cgggtacccg tgtatccaat aaaccctctt
     4561 gcagttgcat ccgacttgtg gtctcgctgt tccttgggag ggtctcctct gagtgattga
     4621 ctacccgtca gcgggggtct ttcatgggta acagtttctt gaagttggag aacaacattc
     4681 tgagggtagg agtcgaatat taagtaatcc tgactcaatt agccactgtt ttgaatccac
     4741 atactccaat actccgtaaa tagttcatta tggacagcgc agaaagagct ggggagaatt
     4801 gtgaaattgt tatccgctca caattccaca caacatacga gccggaagca taaagtgtaa
     4861 agcctggggt gcctaatgag tgagctaact cacattaatt gcgttgcgct cactgcccgc
     4921 tttccagtcg ggaaacctgt cgtgccagct gcattaatga atcggccaac gcgcggggag
     4981 aggcggtttg cgtattgggc gctcttccgc ttcctcgctc actgactcgc tgcgctcggt
     5041 cgttcggctg cggcgagcgg tatcagctca ctcaaaggcg gtaatacggt tatccacaga
     5101 atcaggggat aacgcaggaa agaacatgtg agcaaaaggc cagcaaaagg ccaggaaccg
     5161 taaaaaggcc gcgttgctgg cgtttttcca taggctccgc ccccctgacg agcatcacaa
     5221 aaatcgacgc tcaagtcaga ggtggcgaaa cccgacagga ctataaagat accaggcgtt
     5281 tccccctgga agctccctcg tgcgctctcc tgttccgacc ctgccgctta ccggatacct
     5341 gtccgccttt ctcccttcgg gaagcgtggc gctttctcat agctcacgct gtaggtatct
     5401 cagttcggtg taggtcgttc gctccaagct gggctgtgtg cacgaacccc ccgttcagcc
     5461 cgaccgctgc gccttatccg gtaactatcg tcttgagtcc aacccggtaa gacacgactt
     5521 atcgccactg gcagcagcca ctggtaacag gattagcaga gcgaggtatg taggcggtgc
     5581 tacagagttc ttgaagtggt ggcctaacta cggctacact agaaggacag tatttggtat
     5641 ctgcgctctg ctgaagccag ttaccttcgg aaaaagagtt ggtagctctt gatccggcaa
     5701 acaaaccacc gctggtagcg gtggtttttt tgtttgcaag cagcagatta cgcgcagaaa
     5761 aaaaggatct caagaagatc ctttgatctt ttctacgggg tctgacgctc agtggaacga
     5821 aaactcacgt taagggattt tggtcatgag attatcaaaa aggatcttca cctagatcct
     5881 tttaaattaa aaatgaagtt ttaaatcaat ctaaagtata tatgagtaaa cttggtctga
     5941 cagttaccaa tgcttaatca gtgaggcacc tatctcagcg atctgtctat ttcgttcatc
     6001 catagttgcc tgactccccg tcgtgtagat aactacgata cgggagggct taccatctgg
     6061 ccccagtgct gcaatgatac cgcgagaccc acgctcaccg gctccagatt tatcagcaat
     6121 aaaccagcca gccggaaggg ccgagcgcag aagtggtcct gcaactttat ccgcctccat
     6181 ccagtctatt aattgttgcc gggaagctag agtaagtagt tcgccagtta atagtttgcg
     6241 caacgttgtt gccattgcta caggcatcgt ggtgtcacgc tcgtcgtttg gtatggcttc
     6301 attcagctcc ggttcccaac gatcaaggcg agttacatga tcccccatgt tgtgcaaaaa
     6361 agcggttagc tccttcggtc ctccgatcgt tgtcagaagt aagttggccg cagtgttatc
     6421 actcatggtt atggcagcac tgcataattc tcttactgtc atgccatccg taagatgctt
     6481 ttctgtgact ggtgagtact caaccaagtc attctgagaa tagtgtatgc ggcgaccgag
     6541 ttgctcttgc ccggcgtcaa tacgggataa taccgcgcca catagcagaa ctttaaaagt
     6601 gctcatcatt ggaaaacgtt cttcggggcg aaaactctca aggatcttac cgctgttgag
     6661 atccagttcg atgtaaccca ctcgtgcacc caactgatct tcagcatctt ttactttcac
     6721 cagcgtttct gggtgagcaa aaacaggaag gcaaaatgcc gcaaaaaagg gaataagggc
     6781 gacacggaaa tgttgaatac tcatactctt cctttttcaa tattattgaa gcatttatca
     6841 gggttattgt ctcatgagcg gatacatatt tgaatgtatt tagaaaaata aacaaatagg
     6901 ggttccgcgc acatttcccc gaaaagtgcc acctgacgtc taagaaacca ttattatcat
     6961 gacattaacc tataaaaata ggcgtatcac gaggcccttt cgtctcgcgc gtttcggtga
     7021 tgacggtgaa aacctctgac acatgcagct cccggagacg gtcacagctt gtctgtaagc
     7081 ggatgccggg agcagacaag cccgtcaggg cgcgtcagcg ggtgttggcg ggtgtcgggg
     7141 ctggcttaac tatgcggcat cagagcagat tgtactgaga gtgcaccata tgcggtgtga
     7201 aataccgcac agatgcgtaa ggagaaaata ccgcatcagg cgccattcgc cattcaggct
     7261 gcgcaactgt tgggaagggc gatcggtgcg ggcctcttcg ctattacgcc agctggcgaa
     7321 agggggatgt gctgcaaggc gattaagttg ggtaacgcca gggttttccc agtcacgacg
     7381 ttgtaaaacg acggccagtg ccannnncgc tctcccttat gcgactcctg cattaggaag
     7441 cagcccagta gtaggttgag gccgttgagc accgccgccg caaggaatgg tgcatgcaag
     7501 gagatggcgc ccaacagtcc cccggccacg gggcctgcca ccatacccac gccgaaacaa
     7561 gcgctcatga gcccgaagtg gcgagcccga tcttccccat cggtgatgtc ggcgatatag
     7621 gcgccagcaa ccgcacctgt ggcgccggtg atgccggcca cgatgcgtcc ggcgtagagg
     7681 cgattagtcc aatttgttaa agacaggata tcagtggtcc aggctctagt tttgactcaa
     7741 caatatcacc agctgaagcc tatagagtac gagccataga taaaataaaa gattttattt
     7801 agtctccaga aaa
//
